AireCell Extrusions

Gerbig Cleanrooms has designed about 60 PVC extrusions and aluminum extrusions for wall panels. The extrusions make up the AireCell modular cleanroom system. The extrusions are generally used to construct hardwall and softwall cleanrooms but are also used for workstations, pass-thrus and cleanroom partitions. We have panel gasket/retainers for .060”, .125”, and ¼” material.

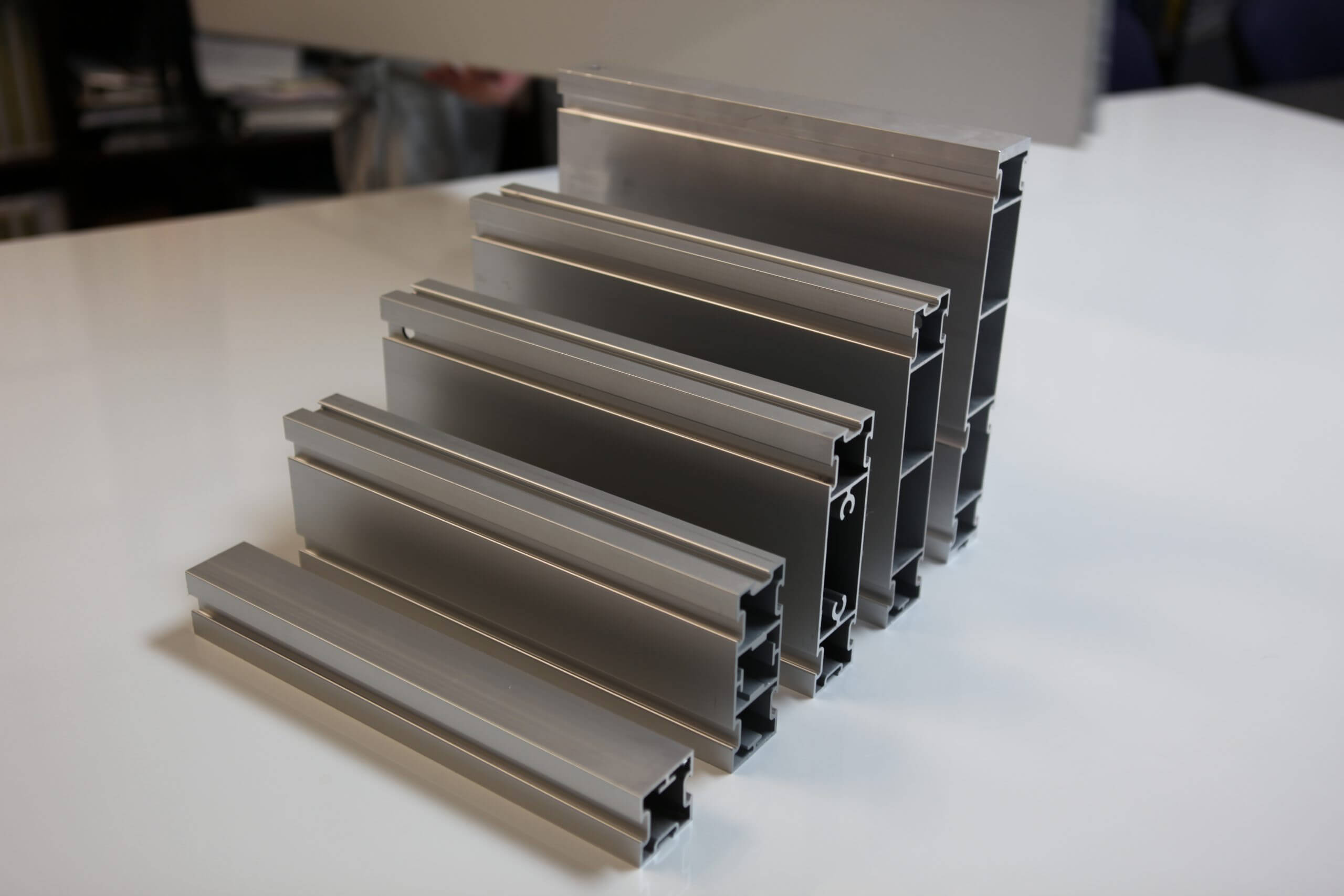

AireCell Ceiling Extrusions

Aluminum extrusions for wall panels and ceilings are primarily equipped for strength in cleanroom systems.

  • CX233 – Cross Tee Extrusion
  • CX127 – Ledge Extrusion
  • CX244 – 4″ Beam Extrusion
  • CX232 – 6″ Beam Extrusion
  • CX235S – 7 1/2″ Beam Extrusion
  • CX255 – 10″ Beam Extrusion



AireCell General Extrusions

Vertical Studs

  • CX203
  • CX234
  • CX237
  • CX231
  • CX228
  • CX222R
  • CX228
  • CX239
  • CX222
  • CX226
  • CX230
  • CX237F

Horizontal Extrusions

  • CX211
  • CX251
  • CX213
  • CX227
  • CX213F

Special Applications

Gerbig has the ability to design unique aluminum extrusions for wall panels and die profiles to accommodate special applications.

  • CX201 center to offset
  • CX200 single to double flutes
  • CX202 foreign wall interface
  • CX229 I-Beam
  • CX119 ¼” ledge
  • CX127 Ceiling Ledge Extrusion
  • CX225 Hinge
  • CX125 Base Holding

Batten System

Some cleanrooms are built with cleanroom panels attached to steel studs with batten strips. For this application, use CX101 and CX105 battens along with CX103, 104 106. For corners, use CX102 and CX108.

Battens

  • CX101
  • CX103
  • CX105
  • CX108
  • CX102
  • CX104
  • CX106
  • Filler Strips

PVC Extrusions

PVC extrusions and aluminum extrusions for wall panels are generally used as retainers for tempered glass, egg crate, filler strips, gasket seals, or for removable panels.

  • #9169 1/4″ Glass Retainer
  • #5864 Panel Retainer
  • #5686 Filler Cover Strip
  • #9311 Gasket Seal
  • #4794 In Slot Panel Retainer
